INTRODUCTION OF BLUESEAS BWMS
·Working mechanism is electrolysis of salt water to producechlorine and chemically active free radicals, which arepowerful to kill organisms in water
·Efficiency and risk assessments had been tested and/orverified by PSB TUV, and DHI. The Class involved were/areDNV GL, RINA and ABS.
·It is protected by a patent (national phase-Singapore).
·BlueSeas obtained basic approvals from IMO in July 2011.
·BlueSeas BWMS is used in an APL container ship (2500TEU and ballast water capacity of 400-500 m3/h). 12-monthtest shows that our system is very stable and has not causedany issue/problem in operation of ship

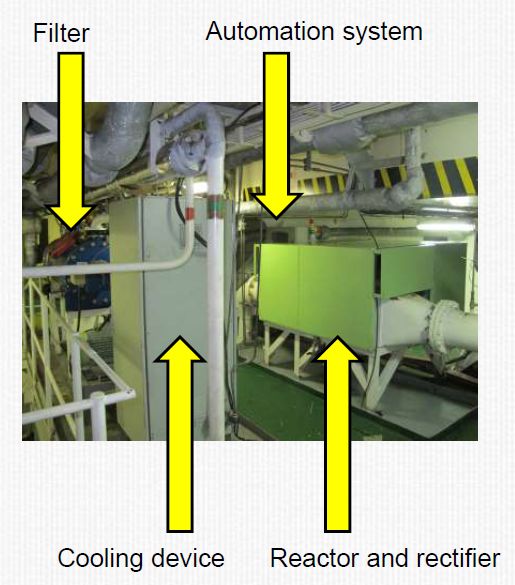

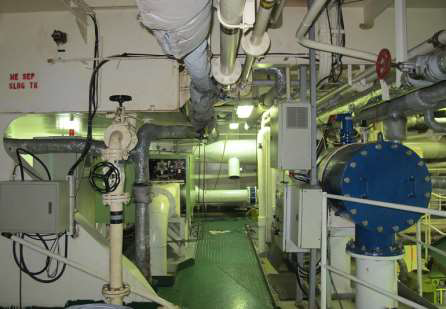

FULL-SCALE BLUESEAS BWMS @ APL PUSAN

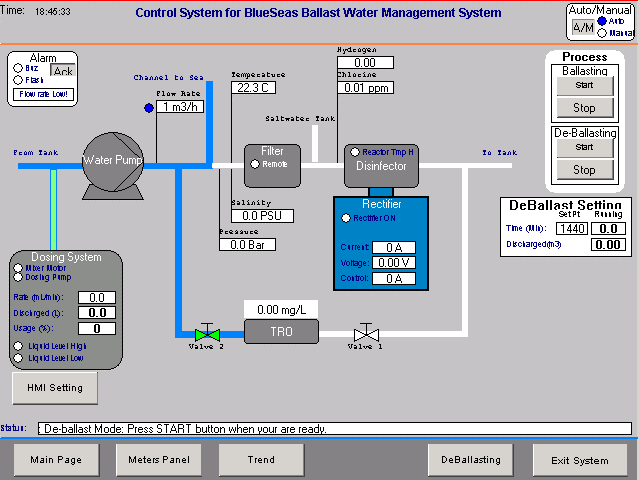

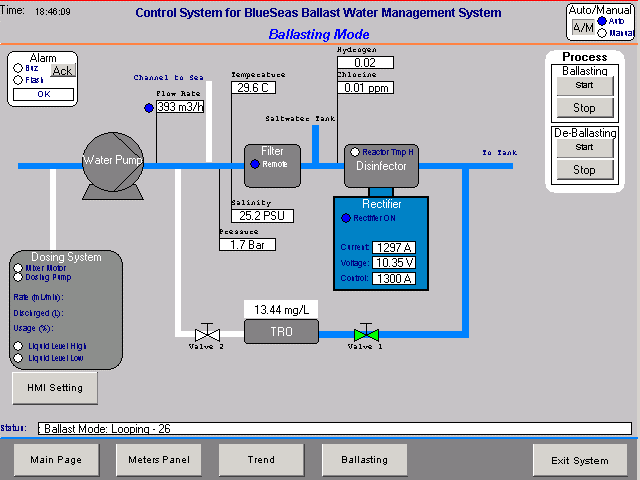

FLOW CHART AND HMI OF PLC
Ballasting operation
PERFORMANCE OF BLUESEAS BWMS IN SHIPBOARD STUDY @APL PUSAN

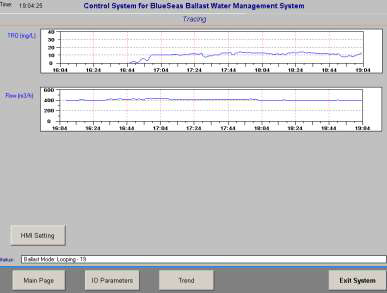

Flow rate and TRO during operation

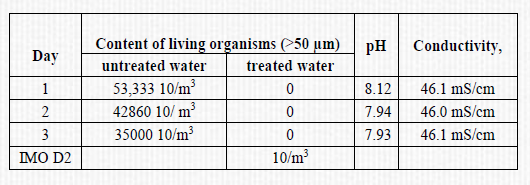

List of treatment result
Energy consumption: 35-45 kwh for 1000 m3/h

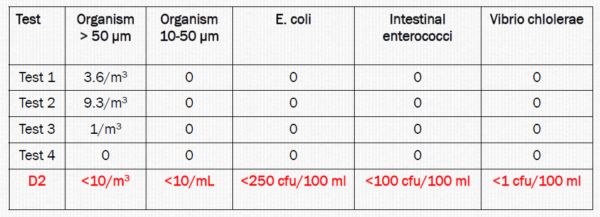

PERFORMANCE OF BLUESEAS BWMS IN LAND-BASED STUDY(DATA FOR FINAL APPROVAL FROM DHI TESTING FACILITY)
Eco-toxicity study, measurement of disinfection byproducts, modeling forenvironmental risk assessment, and measurement of chlorine /hydrogen gasesby DHI and PSB TUV show that BlueSeas BWMS has no harmful effects tomarine environment and ship.

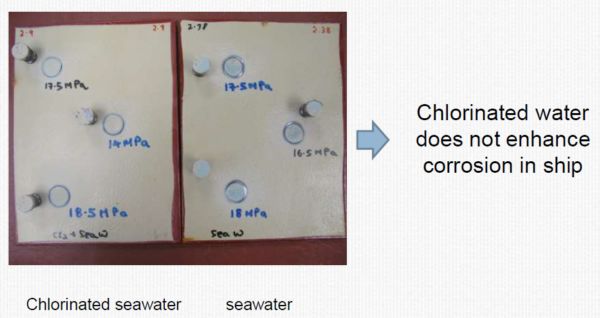

MORPHOLOGY AND MECHANICAL STRENGTH OF COATEDSTEELS [8 MONTHS] IN CORROSION STUDY
ADVANTAGE OF BLUESEAS
Smaller foot-print:
?-For ballast water of 1000 m3/hour, space required is 6 m2?
Lower energy consumption:
?-energy consumption is ~40 kW for ballast water of 1000m3/hour vs 80 to 200 kW of others.
Lower pressure drop: no more than 0.5 bar vs 1 to 2 bar ofother BWMSs
-It is flexible in installation
ADVANTAGE OF BLUESEAS, CONT’D
Ease in operation:
? -Operation modes: Fully PLC control or manual control
? -Major unit’s maintenance is once in 1 to 2 years.
Modular design
? -Standard reactor is 400 mm x 400 mm x 1000 mm for 1000 m3/hour
? -Reactor can be designed according to space requirement
Longer life-space of electrode
?- Our test shows that electrode for production of chlorine can becontinuously for 6000 hours in one year without maintenance.
?- Electrode can last for more than 10 years
? IP 22 to 67 and EX
? GL approval for use in an APL container ship
GOOD BUSINESS OPPORTUNITIES
? Cost of devices/production is
Total = 30,000 (rectifier) + 20,000 (reactor) + 25,000 (filter) + 8,000 (PLCcontroller) + 4000 (TRO device) + 6000 (sensors) + 7000 (pumps, panels, etc)= 100,000 SGD
? Unit price in market is 400,000 – 800,000 USD
IMO AND TYPE APPROVAL

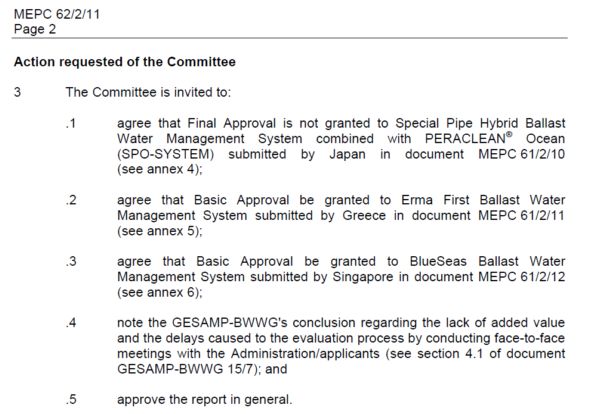

Basic approval from IMO (MEPC 62)

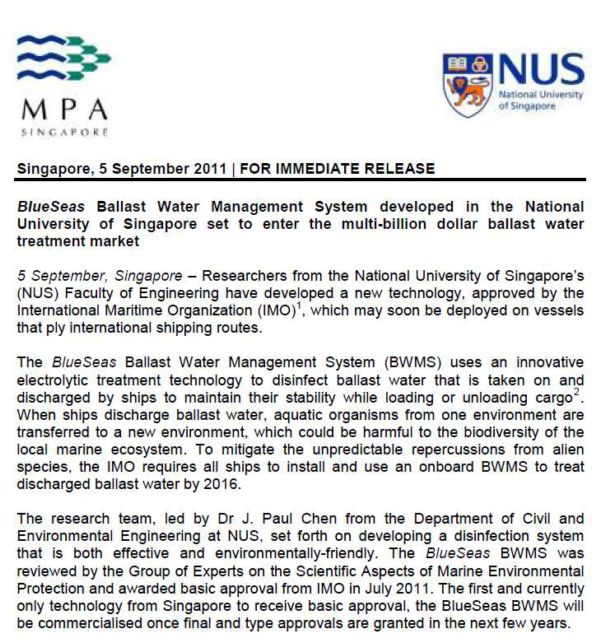

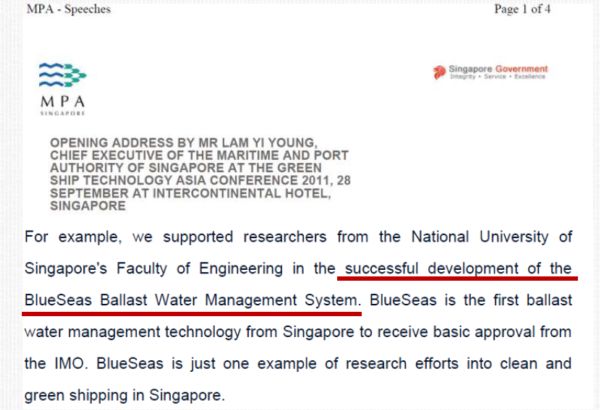

Recognition by MPA
HIGHLIGHT OF BLUESEAS BWMS IN 2012 SINGAPORE MARITIME WEEK
J. Paul Chen
Envirotech Consultancy Pte Ltd (ECPL), Singapore
jpaulchen@blueseas.com.sg; jpaulchen@gmail.com; +65-9770-8092
